WallFrame 2/5 - HTTP

Introduction

In this post, we will see how to set up a basic HTTP server to control RGB stripes through a simple user interface. It is strongly recommended to see the preceding post before proceeding.

RPi Pico W pinout

Simple HTTP LED control

Let’s set-up a simple HTTP server which allows the control of the on-board LED with simple HTTP GET commands.

Wifi & LAN configuration

Folowing code allows to configuration of the WIFI, and LAN interface.

import network
import time
import socket
import machine

# WiFi's name & pass
ssid = 'xxxx'
password = 'xxxx'

# Initialize the LED on GPIO pin 25 (onboard LED)
led = machine.Pin("LED", machine.Pin.OUT)
led.off()  # Ensure the LED is off initially

# Define the static IP address for the Raspberry Pi Pico WH
static_ip = '192.168.1.20'
# Define the subnet mask for the network
subnet_mask = '255.255.255.0'
# Define the gateway IP address, usually the IP of your router
gateway = '192.168.1.1'
# Define the DNS server IP address, using Google's DNS in this case
dns_server = '8.8.8.8'

# Initialize the Wi-Fi interface in station mode
wlan = network.WLAN(network.STA_IF)
# Activate the Wi-Fi interface
wlan.active(True)
# Set the hostname for the device
wlan.config(hostname="MyPicoW-1")
# Configure the Wi-Fi interface with the static IP, subnet mask, gateway, and DNS server
wlan.ifconfig((static_ip, subnet_mask, gateway, dns_server))
# Connect to the Wi-Fi network using the provided SSID and password
wlan.connect(ssid, password)

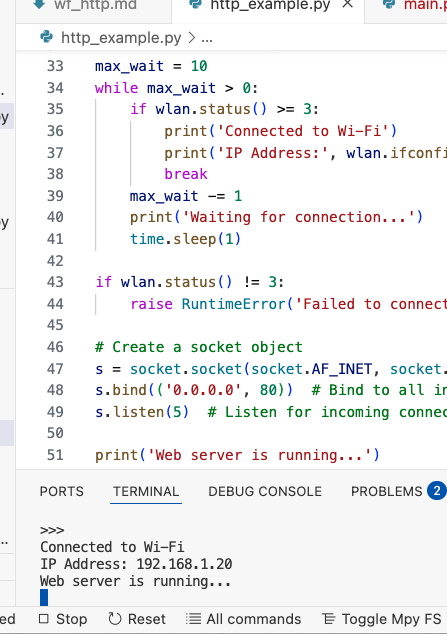

Connection to Wifi

The Pi will try to connect to WiFi during 10 seconds, and print a message if successful.

max_wait = 10
while max_wait > 0:
    if wlan.status() >= 3:
        print('Connected to Wi-Fi')
        print('IP Address:', wlan.ifconfig()[0])
        break
    max_wait -= 1
    print('Waiting for connection...')
    time.sleep(1)

if wlan.status() != 3:
    raise RuntimeError('Failed to connect to Wi-Fi')

Wifi connected

Socket binding

# Create a socket object
s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.bind(('0.0.0.0', 80))  # Bind to all interfaces on port 80 (HTTP)
s.listen(5)  # Listen for incoming connections

Handling clients

For each connection, print the content, and respond to the HTTP GET depending on URLs.

while True:
    conn, addr = s.accept()
    print('Got a connection from %s' % str(addr))
    request = str(conn.recv(1024))
    print('Content = %s' % request)

    if '/led_on' in request:
        led.on()
        response = 'LED is ON'
    elif '/led_off' in request:
        led.off()
        response = 'LED is OFF'
    else:
        response = 'Unknown request'

    conn.send('HTTP/1.1 200 OK\n')
    conn.send('Content-Type: text/html\n')
    conn.send('Connection: close\n\n')
    conn.sendall(response)
    conn.close()

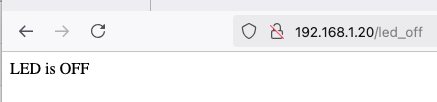

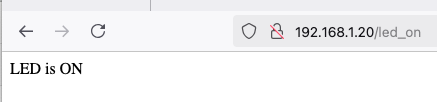

Client side

LED off

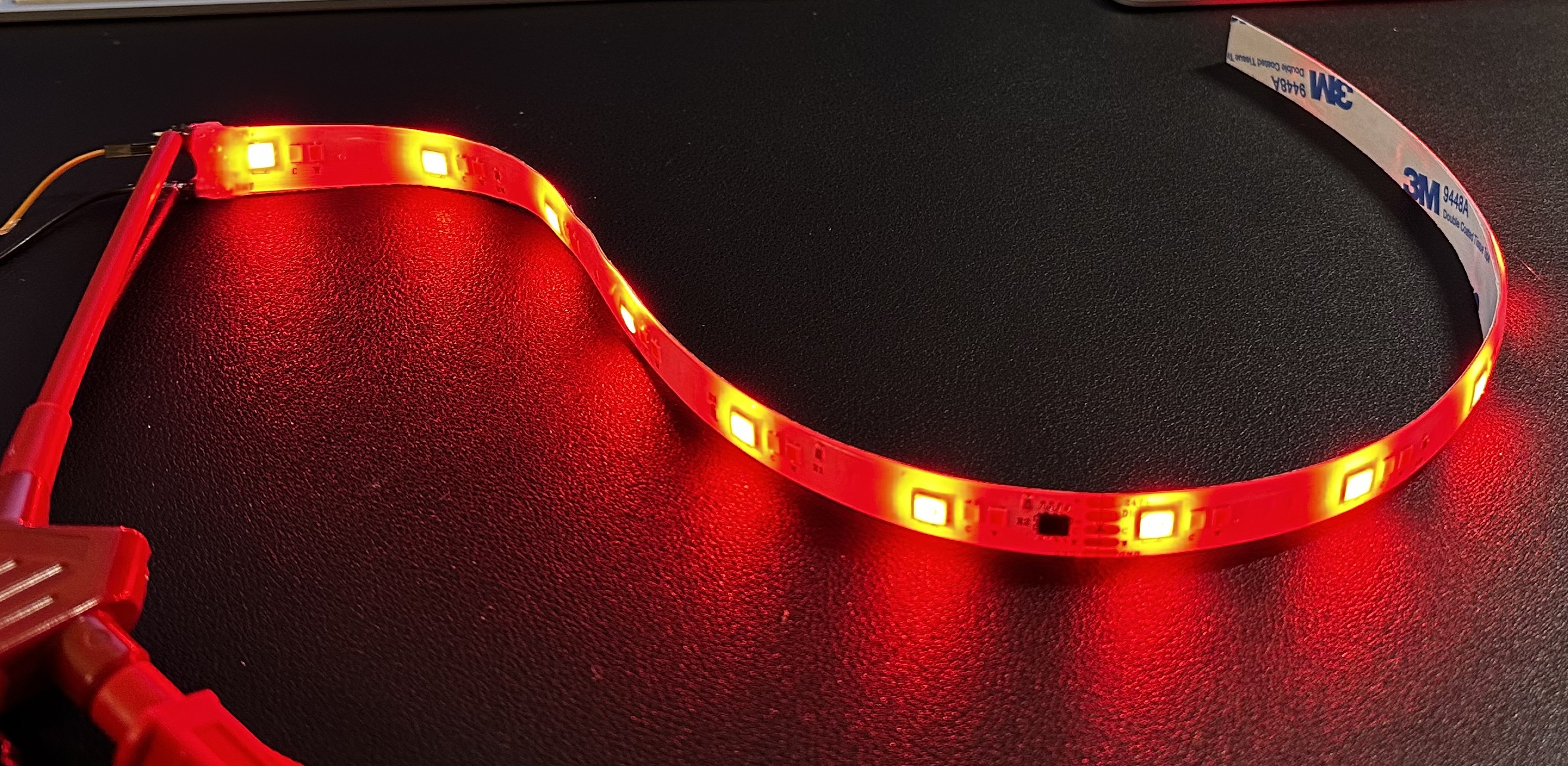

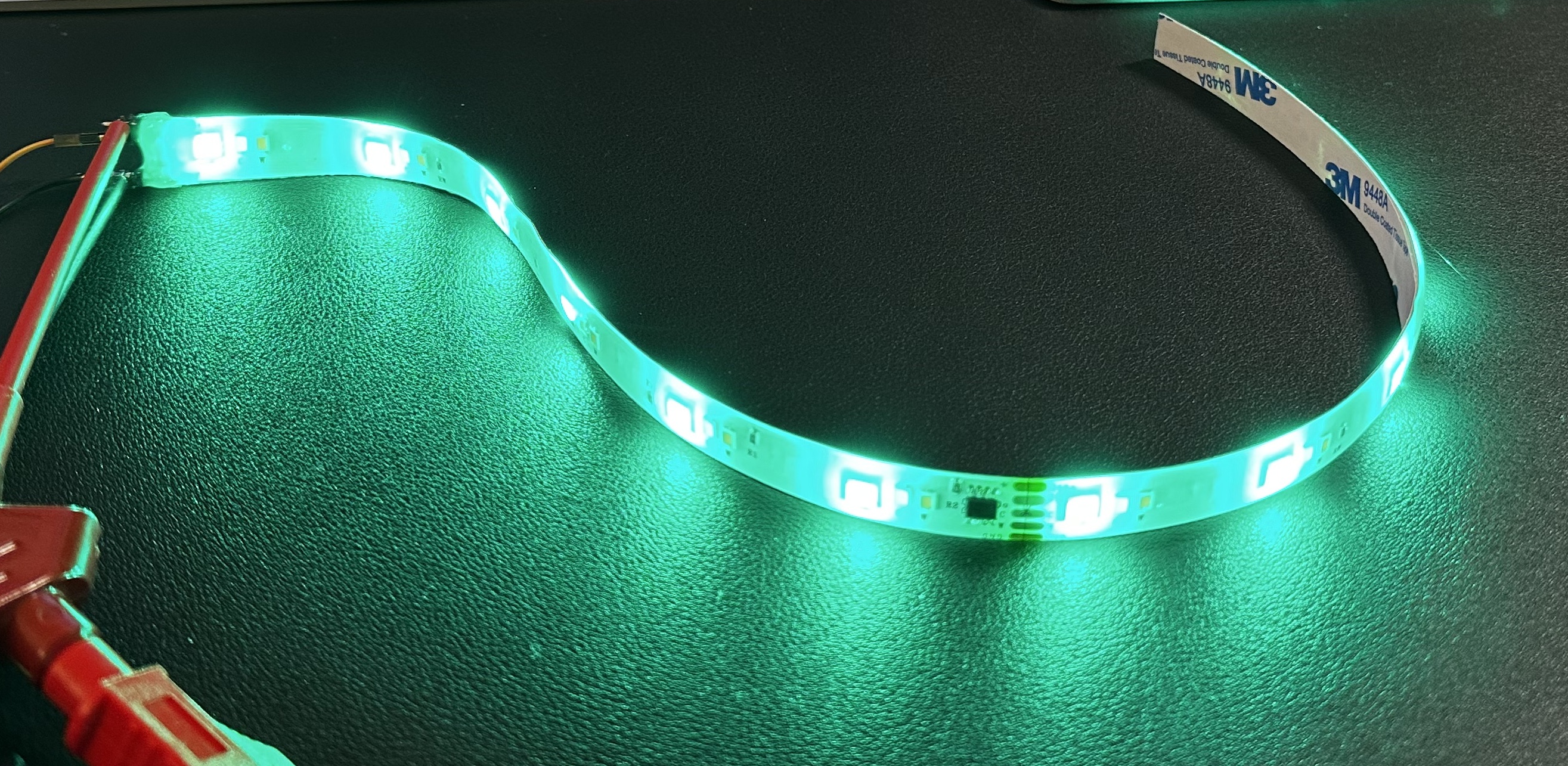

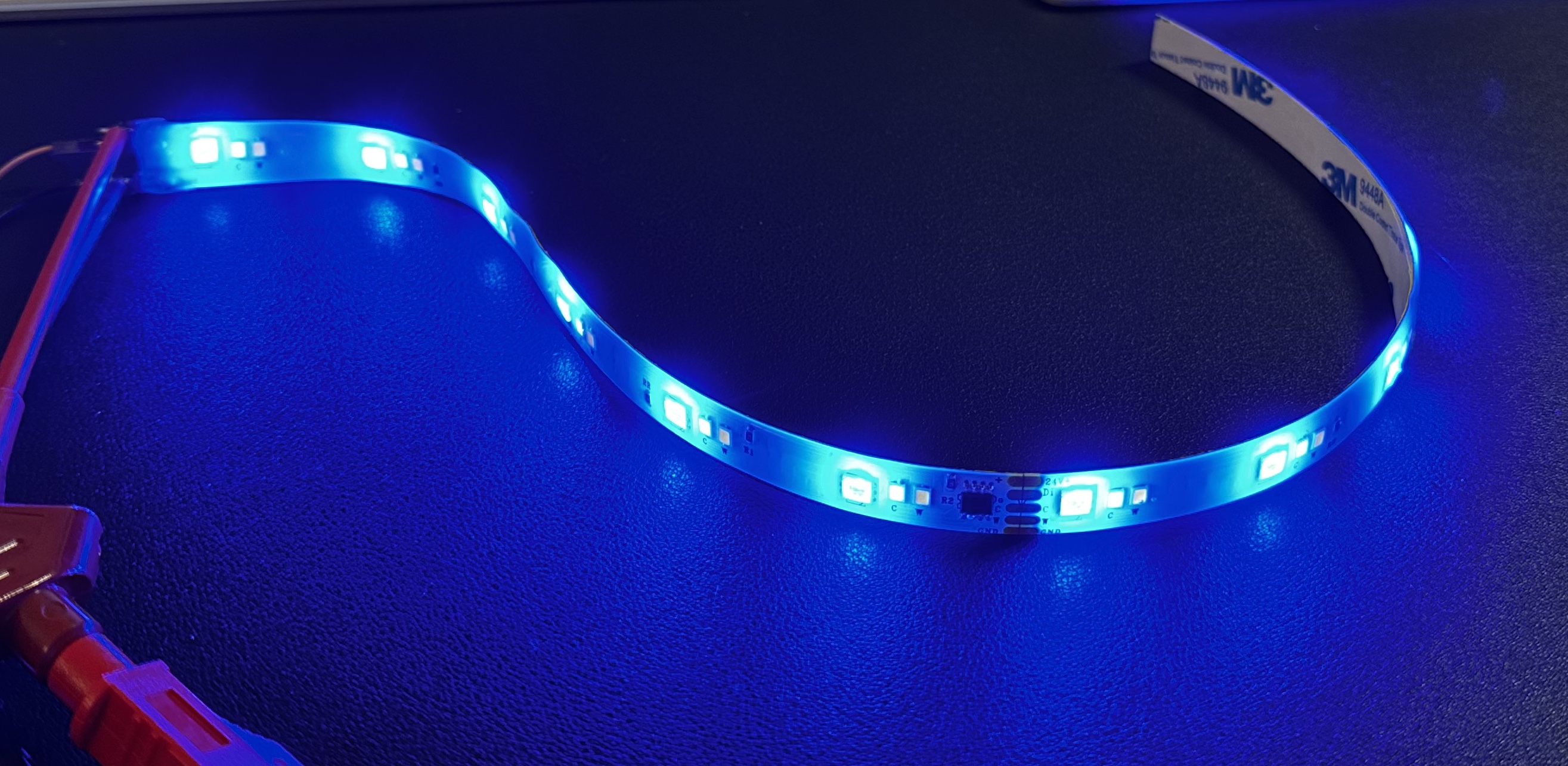

RGB

Now that we saw how to do a basic and simple web server, let’s see the modifications needed to add the RGB stripes. First, add the strip as seen here.

pin = Pin(0)
ledQty = 2
strip = neopixel.NeoPixel(pin,ledQty)

led = Pin("LED", Pin.OUT)
red = 180
green = 0
blue = 150

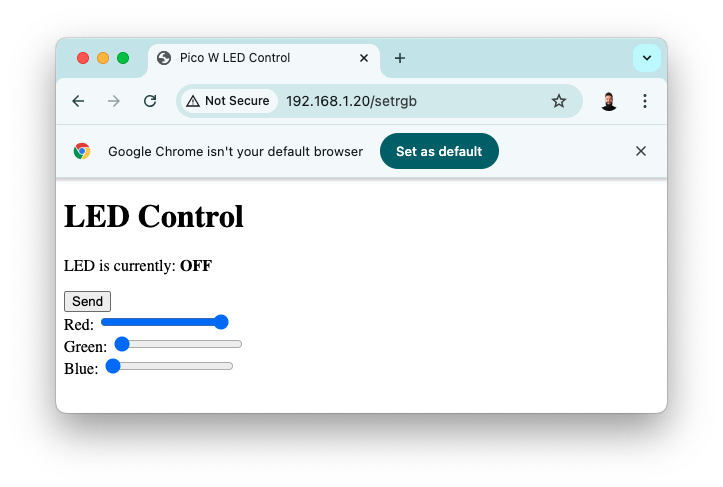

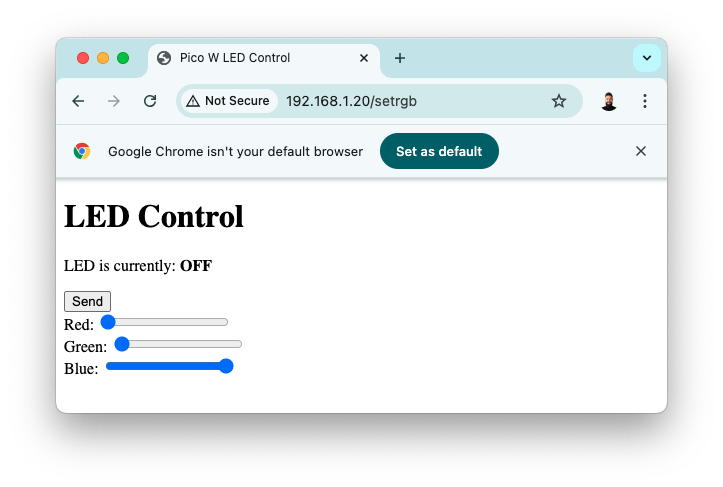

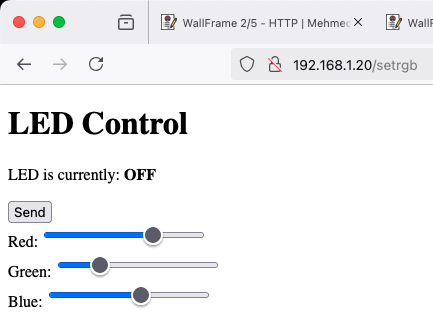

Now, we use a full HTML response with sliders:

# HTML response for the web page
html = """<!DOCTYPE html>
<html>
<head>
    <title>Pico W LED Control</title>
</head>
<body>
    <h1>LED Control</h1>
    <p>LED is currently: <strong>{}</strong></p>
    <form action="/setrgb" method="post">
    <button type="submit">Send</button>
    <div>
    Red:
        <input type="range" min="0" max="255" value={} class="slider" id="slideR" name="RED">
    <div>
        Green:
        <input type="range" min="0" max="255" value={} class="slider" id="slideG" name="GREEN">
    </div>
    <div>
        Blue:
        <input type="range" min="0" max="255" value={} class="slider" id="slideB" name="BLUE">
    </div>
    </form>
</body>
</html>
"""

To finish, manage the different URLS:


    if '/setrgb' in request_str: # get value of each color (from str to int)
        if request_str.find('RED=') != -1:
            red = int(request_str.split('RED=')[1].split('&')[0]) # store red's value & print it
            print('value of red is: ', red)
            blue = int(request_str.split('BLUE=')[1].split("'")[0]) # store blue's value & print it
            print('value of blue is: ', blue)
            green = int(request_str.split('GREEN=')[1].split('&')[0]) # store green's value & print it
            print('value of green is: ', green)
            strip[0] = (blue, red, green) # set stripes color
            strip[1] = (blue, red, green)
            strip.write() # send colors
            led.value(1)  # flash the LED
            time.sleep_ms(200)
            led.value(0)
    if '/ledon' in request_str:
        led.value(1)
    if '/ledoff' in request_str:
        led.value(0)
